PARTS
"It's the service after the sale that counts"
Army 6x6 LLC specializes in conventional style cab configured M35, M809 and M939 series 6x6 trucks. We can assist with all repairs by supplying individual parts to larger major components such as transfer cases, axles, etc. Having repaired 100's of these trucks let our expertise help you get your 6x6 back in top operating condition.

Need a part or component not listed? Give us a call! phone 1 (507) 676-2972


M939 5 ton alternator available with serpentine multi groove pulley for 8.3 C series Cummins and also available with the double V belt pulley for the NHC 250 Cummins diesel. Alternator is 80 AMP, will not fail and ramp up to 60 volts like the OEM alternator can which can damage gauges and ABS computer, etc. Alternator uses standard military belts, install requires no change to wiring harness, easy install with supplied bracket. These have proven to be more reliable than the OEM alternator at less cost. $345

Limited Supply of M939 series hardtops available. These are used takeoff genuine US military hardtops not fiberglass reproductions. Steel constructions with insulation. Rear sliding glass window. Prices range from $1,500+ depending on condition. We will ship!
Hardtops will fit BMY, Harsco and AM General M939 series variants M923, m923a1, M923a2, M931, m931a1, M931a2, M925, M925a1, M925a2, M936,m936a1, M936a2, M927, M927a2, M927a1, M928, M928a1, M928a2, M934, M929, M929a1, M929a2, M934a1, M934a2, M932, M932a1, M932a2, M930, M930a1, M930a2


PIGGY BACK BRAKE CHAMBER for M939 series 5 ton fits M923, 925, 931, 932, 927, 928, 932, 925, 936, 929,930 For both A1 and A2 series Spring Brake. NEW Bendix part. Not NOS. $ 295 We can walk you through the install.
CLICK TO ENLARGE IMAGES

ABS BRAKE ECU (Electronic Control Unit)
For all M939 5-ton military trucks and the Oshkosh MK48 LVS trucks. If your ABS light stays on and the 15AMP inline fuse is blown, a likely cause is the ABS ECY has failed. $ 182
CLICK TO ENLARGE IMAGES

HYDRAULIC FRONT WINCH KIT
M939 5 ton complete hydraulic front winch kit. Winch kit was removed from an A1 series M939 5 ton truck. Unit was tested before removal and is complete with pump, PTO, driveshaft, control tower for cab, winch and frame extensions. $2,100. We can ship!
CLICK TO ENLARGE IMAGES

PROTECTIVE CONTROL BOX
Upgraded Version with Silver Tips to replace the old copper tips contact sticking M939 and M809 series 5 ton protective control box. This control box is the most updated version and will work with the older M809 and newer M939 5 ton trucks. This control box provides reverse polarity protection, controls alternator output, locks out starter If transmission is not in neutral. Part is new production and made in USA. $378
CLICK TO ENLARGE IMAGES

NEW -- Torque Rod End Bushing with Integral Keeper Bar
5 ton Rubber Torque Rod End Bushing with Integral Keeper Bar. Minimizes the chance of axle moving causing damage to other components and losing control should rubber insert fail. Great price for added security. Bushing Fits existing dog bone.
-- End Bushing with Safety Bar, $80
-- Install requires special tool, $90
-- Complete Torque Rod Assembly, (dogbone and bushings with safety bar installed), $240 with purchase of 6 or more


NEW -- Heavy Duty METAL Torque Rod end
5 Ton All Metal Heavy Duty Torque Rod end End Bushing alone ( All Metal ) - $ 130 Complete Torque Rod Assembly, dog bone with all metal bushings installed - $ 335
...


Allison MT654CR 5 speed close ratio automatic transmission for M939 series 5 ton trucks. Transmission works with both A0 and A1 series NHC250 Cummins and A2 8.3 C series Cummins powered 5 ton M939 trucks. Transmission was government rebuilt in 2011 and includes dyno sheets. Transmission is drained of fluids. Torque convertor is included. We can help you through the installation process. Part ships with shipping container which is 56"x30"x36" and approx 1,100lbs total weight. We ship and can export. $3,600

CLICK TO ENLARGE IMAGES

NEW M939a2 serpentine belt for 8.3 liter Cummins C series diesel.
3912004 NSN 3030012713754 $39

... NEW, not rebuilt Starters for Cummins NHC-250, Cummins 8.3 C series and multi-fuel diesel available call with needs for various models. NHC 250 starter brand new $410

Windshield washer pump for all m939 series 5 ton trucks. $52.00

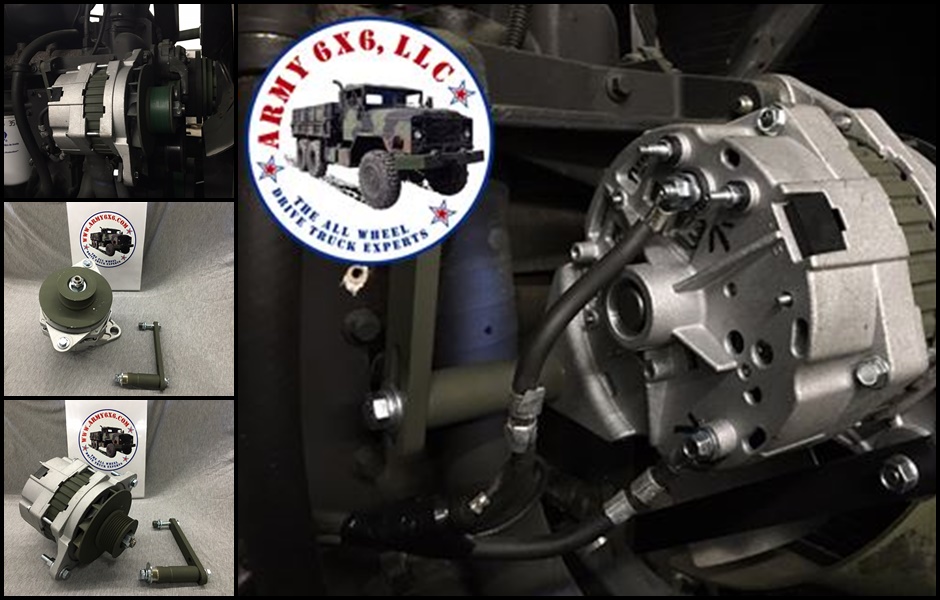

12 Volt add on Kit Kit includes 12 volt alternator, brackets, belt and pulley, battery cables , installation instructions Provides a separate 12 volt system. Solves the battery balance problem when 24 volt system is tapped for 12 volt. Protects 12 volt components you add to your truck. $ 475
CLICK TO ENLARGE IMAGES


NEW ITEM: PTO Kit for M939 series 5 ton trucks:
Cable shift, single speed PTO for all M939 5 tons with 855 Cummins or 8.3 Cummins with MT654CR transmission. Kit includes installation instructions, mounting hardware, indicator light, shift cable, gaskets, oil line hose and safety decals. This is an aftermarket kit not military OEM. Ratio 0.514:1 torque 250lb ft output shaft 1-1/4" inch keyed. We can walk you through the installation. $440



NEW ITEM: M35a2 2.5 ton master cylinder. This is a new unit and not rebuilt. This will not fit m35a3 trucks. PN 7539267 NSN 2530007539267. $90 each. We also have rebuild kits available.

NEW ITEM: Lots of Gauges!! M939 5ton m809 ton and m35 m35a2 available. Temperature, air pressure, oil pressure both mechanical and electric, tachometer, speedometer, etc. call with needs. We also have sending units and drive cables.

NEW ITEM: Hood latch for m939 5 ton. $79.50 each

NEW ITEM: Fuel shutoff solenoid for m939a2 8.3 C series Cummins engines. This is NOT a cheap unreliable Chinese might fit part. Made in USA genuine Cummins OEM supplier part. $157 each.
NEW ITEM: Fan clutch actuator for m939a2 and M939a1 5 ton. Fits both NHC 250 and 8.3 C series Cummins diesel. No adapter needed for install unlike most being sold. American made part. NSN 2930012855027 $172 each.

NEW ITEM: Treadle valve for m939 series 5 tons. This is a Bendix OEM part and works with ABS and non ABS equipped m939 series trucks. NSN 2530011126435. $185 each.

NEW ITEM: Air brake parts for m939 series 5 tons. Call with needs. We can help with your installation questions.


24V to 12V Converter
This item allows a military semi tractor to adapt to a civilian trailer. It is available in two formats: Non ABS and ABS capable. The Non ABS version sells for $390. Call for pricing on the ABS capable unit. 1. It is made in the USA. 20AMP lighting capability 12 Volts @ 20 Amps (240 watts lighting power) • Surge Suppression • Overload Protection • Automatic Reset • Water-proof • Plug & Play (no wire cutting or splicing) Compatible with: 3 Lever or Push Button Light Switches


NEW ITEM: Need seals? We have them! All M809 and m939 series 5 tons and m35 m35a2 seals we carry. Pinion seals, wheel seals, etc we can walk you through the install. No old surplus seals all are new production! Call with needs!
Wrecker spade 83” Long. Can be used with m936 and m816 wreckers and also other applications. Used to anchor your truck from sliding ahead when winching. Appear to be unused. Have 2 in stock. $40 each. We can ship.

Diesel fired heater. 28" long by 11" wide by 21" tall. These came out of m934 expandable vans. None of the heaters have been test fired. Made by Hunter Mfg Co. Model UH-68. Volts 120ac 50/60hz 7.0 amps. 60,000btu. Units are as is - we can ship! $200 each.

Operators Manuals. Various M939 and M809 5 ton operators manuals. Reading up on these manuals is a mandatory to familiarize yourself with your trucks operation. $30 each. Canvas and vinyl bags also available.


First Aid Kits


Various Clevis styles available. Genuine US military that came off front bumpers. $20 each.


NEW ITEM: M35a2 steer axle and one drive axle. Sold as a set. Not other sets available. Sold as axles only- Tires and springs not included. These came off a running and driving truck. $1,300 for the pair.
CLICK TO ENLARGE IMAGES

M809 5 ton series front axle. Axle was removed from m816 wrecker truck. Axle is manufactured by Rockwell and is double reduction. Brake system is hydraulic. 6.44 gear ratio. This axle will fit all m816,M813, M820, etc. $750. Last one in stock and we can ship.

M809 series 5 ton PTO for Spicer 6453 manual transmission. PTO was removed from used m816 wrecker, $375

M939 and M809 5 ton and also M35 2.5 ton heater core kit. Includes new heater core with correct inlet and outlet orientation. New drain valve and isolators. $220. This kit fits m35a2,m35a3, M923a1, M923a2,M813, M818, M816,M820, M927, M927a1, M927a2, m929, M929a1, M929a2, and much more!

NEW ITEM: CTIS parts for m939a2 trucks. Good take off CTIS parts from controllers, wheel weights, covers, air hardware, etc. Call with needs. We also sell the hardware to disable CTIS.
<
CLICK TO ENLARGE IMAGES


M939 Heater Fan and Blower
M939 Heater Fan and Blower Assembly for m939 series 5 ton trucks. 24 Volt with separate ground. Motor is improved over the OEM motor and other substitutes. Install is easy with the fan already attached, no modifications required. $190


M939 5 ton soft tops.
Good selection of take off insulated vinyl green camo and tan soft tops in stock. $125 per top without steel bracing. Soft top bracing and support bows also available at additional cost. Fits BMY and AM General m939 5 ton, m923, m923a1, m923a2, m925, m925a1, m925a2, etc.
M939 5 ton, m809 5 ton and m35a2 2.5 ton soft top braces available. Like new complete take offs- driver and passenger side bracket, two back rods and 3 roof supports. $75 for kit as shown in picture. Soft tops also available in tan and green colors. Call with needs. We ship!!


M35 and m809 5 ton STEEL HARDTOP.
Only two left. Both were like new and came off fresh government rebuild trucks and have been inside since removed. Excellent overall condition. We can ship! Fits m35a2, m36a2, m35a3, M818, m814,m816,m813, etc. $900 each.


Warning triangle kit. Comes with three triangles. Required to be DOT compliant with most commercial vehicles. $10 for as pictured/like new. $8 for good used.
Jerry Can items(2)
Jerry Can nozzle with screen on end. $15 for like new. $10 for good used.


NEW ITEM: M809 used 5ton antifreezes surge expansion tank. This fits M813,M814, M816 M817, M818, M820 and more M809 5 ton variants. $30


Jerry Can holder used take offs. Both tan and green in stock. $20
CLICK TO ENLARGE IMAGES

Trailer harness approx 12ft long. We also have some longer harnesses available if needed. Most are like new. $35 for 12ft harness as pictured.


Bridge plates some are like new and some are sun faded. Like new $55. Sun faded $40


M809 5 ton Cummins powered military 6x6 trucks. Radiator is SOLD and fan is AVAILABLE. Fits m813, m816, m818, m820 and other m809 variants. Radiator $275 fan $30


M809 5 ton fender mounted air cleaner assembly. Fits the following models m818, m813, m816, m817, m820 $50


M35a2 Transmission
M35a2 Spicer 3053 A 5 speed manual good take out transmission. The 3053A transmission has overdrive which works with the multi fuel engine. Transmission serial 23662. $600



Rockwell M939 Transfer Case, Model T1138 , 2spd high and low range. Unit is good take out. $1,200

M939 5 ton chain fall / hoist. These are rated for 500lbs. The chain hoist allows the operator of a M900 M939 series 5 ton to raise and lower the large and heavy spare tire safely into the carrier behind the cab. Genuine US military item. Good Tested used unit is $80.00 and new in the box $100


Steering wheel
For M35a3 2.5 ton and M809 and M939 series 5 tons^^^
Great for replacing the hard plastic OEM steering wheel which is prone to cracking. This steering wheel has a light texture and is slightly cushioned for improved grip. We can walk you through the installation process. $150


939 5 ton A2 series CTIS controller.
Good used take out $70. Eaton model 6AC3500A01 will fit M923a2 M925A2 M936a2 M927a2 M928A2 M934a2 M931a2 M932a2 m929a2 And other A2 5 m939 models.





M939 series 5 ton and M35a3 windshield wiper blade. 14" long $9.00 M939 series 5 ton valve stem grommet. These fit the pictured style valve stem which is not included. If you have a leaky tire these are often the culprit. $7 each for grommet.


Transmission Cooler for M939 series trucks. It is a take off unit. Price is $ 585
Used on all m939 series trucks.



Used m35a2 oil pressure sending unit for multi fuel engine. $15


NEW ITEM: M939 5 ton muffler Muffler for m939 series 5 ton trucks. This will fit all m939 series trucks both A0 and A1 series with NHC 250 Cummins and A2 series with 8.3 Cummins power. $185 Need other exhaust parts? Please call us with your needs.

M35a2 multi fuel used Exhaust J pipe $65 Wiper motor air valve $7 Starter button $7

Driveshafts of various lengths for m35 . All used take take off. $75and up. Call with needs.

M35a2 multi fuel engine fan. $25

M35a2 multi fuel used starter $130

M35a2 grill guard $100

M35a2 used multi fuel air compressor $75

M35a2 multi fuel used water pump $50 (no picture)

M35a2 multi fuel used tachometer cable. $35


M939 5 ton good used Heater core and housing includes fan housing without fan motor $80; with fan motor $110.









M35a2 good used take out Air shift 2 speed transfer case. Rockwell Standard model T136 27. Brand new parking brakes. $450

Long wheelbase 5 ton 20ft tarp. Tan and green take off tarps in stock. Good used condition. $650 includes bows.


M35a2 Non Dropside Beds
Approx 12ft overall length. Overall very good condition. We have 4 in stock- 2 tan and 2 green. We can install these beds on M818 or M931 5 ton semi tractors to make a short heavy duty cargo truck.
M35 beds are $600 each. We can load.

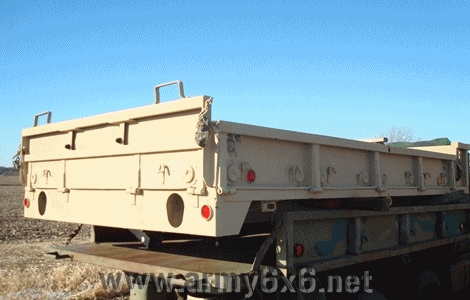

14 Foot Drop Side Bed off M923. M923 Dropside Bed- EXCELLENT condition- 2 in stock Approx 14' total length. 12'5" drop side section of bed- the front section if fixed. 34" to outside longitudinal, 28" to inside longitudinal. Great for restoring your M813 or for building or upgrading another flatbed truck.
A lot of bed for only $800 each. We can load.



Yanmar Diesel Powered Continuous 3kw Generators $1250. Multiple in stock and all have less than 75 hours. ↓ Yanmar Diesel Powered Continuous 3kw Generators $1250. Multiple in stock and all have less than 75 hours. ↓

Glad hand tire inflator with 30ft hose. Most are Milton air gauges. $45 for used units with missing glad hand adapter or that have air quick disconnect fitting end. These are sold as is.
Limited supply of new complete with glad hand adapter tested units for $80 each.


Lug Nut Wrenches with 3/4" for inner lug nut and 1.5" hexagon for outer nut. Longer Style in picture with bar $40 each. Shorter style with shorter bar $30 each- Shorter Style does not have 3/4 inner lug nut head just 1.5" for lug nuts.


5 Ton Fifth Wheel Plates off M818 semi tractors. Most were brand new $175 Multiple in stock


Pioneer Tool Kit Tools- Call or email with what you need.

M809 5 ton inner fender shield $35

Used Large, Medium, & Small Straps commonly used in the cargo area in the back of 2.5 ton and 5 ton trucks to keep troops from falling out the back in rough terrain. Adjustable. 115" length by 1.75" width. Hooks on the driver side and passenger side troop seats. Great for parades or to;make your 6x6 look correct for shows, etc. $15 each. 20+ in stock. Used Medium strap- 1.5" width by 53" total length with hooks. $9 each. Used Small Strap 1" width x 13.5" length with hook. $9 each.

Whiffle tree for 5 ton wrecker. Used for m936 and m816 5 ton wreckers. Used take off in good working condition. 40” long. $150


Used Operations Manual Canvas Pouch approx 10" width by 13" length. Manual Books are not included. $12 for canvas. Newer vinyl style available $12.
ARMY 6X6
Medium towbar with adjustable legs. Great for towing m35a2, m939 5 tons and smaller vehicles such as Cucv and HMMWV’s. Good working condition. $350.

Antenna mounts available of various configurations. $80 each.


M939 5 ton spare tire carrier Misc parts and also complete assemblies. We have a0 versions that work with the 1100x20 tire and also A1 and A2 versions that work with the 1400x20 super single tire. Call with needs. We can ship.

Boarding ladder for m35a2 and m939 and m809 5 ton trucks. Aluminum and steel ladders in stock. We can ship. $275 for aluminum and $200 for steel.


M939 5 ton cargo truck mudflaps which fit both m923 and m925 and m927 m928 amongst others. A great way to replace your bent, missing or rusty ones. $40 each including brackets.
ARMY 6X6  Curved tire fender for m931a0, m931a1 and m931a2 semi tractors. Excellent condition take offs. Replace your bent, missing or rusty fender. $65 each.

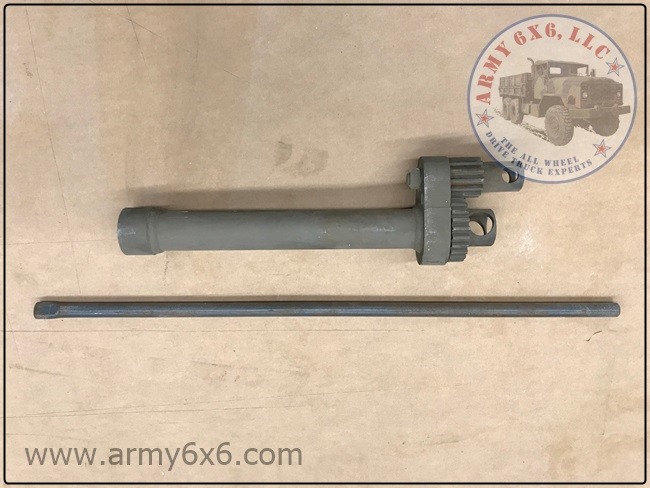

Gear reduction lug nut removal for 1.5” lug nuts and 13/16” square dual lug. Looks to be unused and turns freely. A nice tool to have for roadside tire replacements. Includes bar in picture. $85
Mudflap Kit.
Good used mudflap kit for M931 and M932 semi tractors. $250
www.army6x6.com


Ammunition / Ammo can holders. Spring loaded clamps. $50 each. Only two available.


Power cable end. In excellent shape. Looks to be the same cable end as used on m934 reels. $10


Support leg for m934 or m820 expanding van. Multiple available. $35 each.

M16 rifle / gun holders for truck cabs.  A neat accessory for your cab.  Excellent take out Single rifle kit $40. Double rifle kit $65. Limited quantities available.

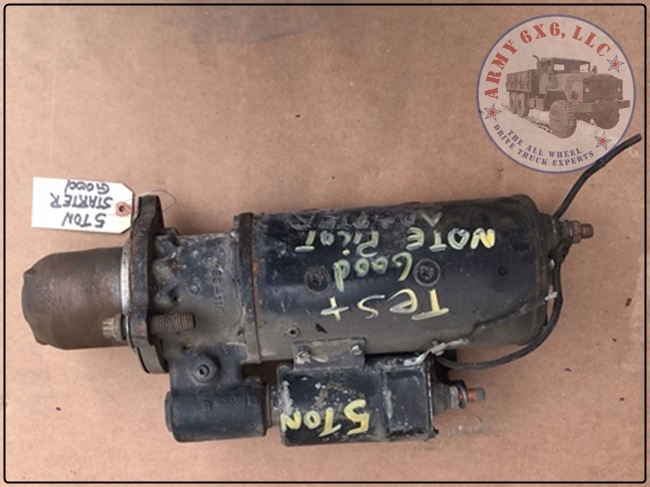

M939 5 ton 24 volt starter for NHC 250 Cummins Diesel. We have one good take out for $250 and one rebuilt unit for $300. We also have new production starters for Cummins NHC 250, Cummins C series 8.3 and Continental multifuel diesels available.

M35a2 bumper. Good used take off. $150. We also have other bumpers for m939 series 5 ton trucks in stock. Call with needs.







Cargo securement braces. These game of m923a1 m923a2 style cargo trucks. These braces clip over the cargo side and allow over dimension loads to be secured. $75 for the set.
M1101 and m1102 model trailers bow kit brackets. Total of 8 which is the complete kit to secure your bows. Bow kit and tarp not included and we do not have these available for this model of trailer. Kit as shown $100


Speaker. Unknown condition $8


M35a2 shock absorbers. Look to be close to new. Came off truck with bad engine. $50 for the pair. Hydraulic steering cylinder for m939 5 Ton. Removed from truck with bad engine. $150


Antenna base and antenna for various truck models. Most were removed from M809, M35 and M939 series 6x6 trucks. Base without spring mount for antenna $40. With spring mount for antenna $60. Antenna is $75. Limited quantity available.



M35a2 good take out steering wheel. One small crack as shown which could easily be epoxied to repair. Nice overall condition. $50.  24v strobe light. We have other varieties and sizes of 24v strobes available. $20 and up. Call with needs.



Fire extinguisher bracket for cab. $5 each.
Mudflap brackets for M931A2, m932a2, m931a1, etc variant 5 ton semi tractors. D.O.T. Regulations require mudflaps on semi tractors. $75 for the pair.


Folding step for mounting to front bumper. A great way to keep your pants from ripping when climbing on a 5 ton truck! These make servicing your truck easier and safer. $50 each


M809 series 5 ton fenders. Drivers fender has some damage to back portion as shown in picture. Passenger fender is in very good shape. They could use paint but fender lips, etc are solid. $75 each. We can ship! We also have fenders for m35a2, m939 5 tons. Call with needs.


Standard spring style seat for m35a2 or 5 ton. $125 without cushions. M35a3 style spring ride seat including cushions with bolsters as shown. Come A3 Seat and base as shown $275. We can ship! The A3 Style seat is comfortable and a nice upgrade. Seat cushions and covers Also available. Call with needs.


M939 series 5 ton new hard tops. These are brand new kits in the box. $3,000 each. Limited quantity. We ship! Fits m923, m923a1, m923a2, M931A2, m931, m931a1, etc!
